Reverse osmosis (RO) membranes are vital components of high-purity water systems used across multiple industries such as pharmaceuticals, power generation, and food and beverage manufacturing. A common and persistent challenge in these systems is microbiological fouling, which can significantly impair membrane performance, lower system efficiency, and increase operational costs due to more frequent cleaning and maintenance.
The Impact of Uncontrolled Biological Treatment

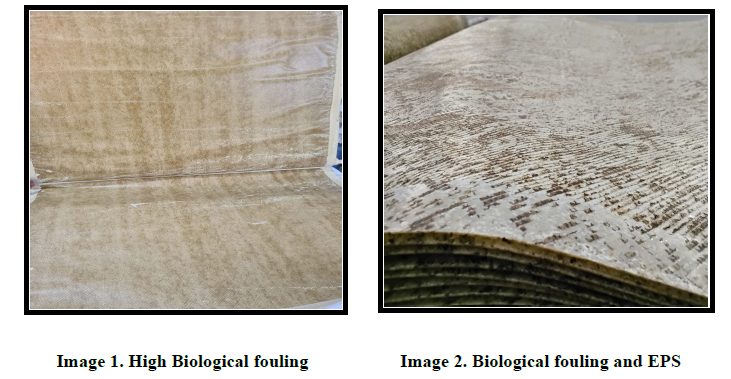

Images 1 and 2 illustrate the detrimental impact of uncontrolled biological treatment on membrane systems. In both images, the membrane surfaces show clear signs of organic matter buildup and biofilm formation. The irregular coloration and thick biological layers indicate the presence of excess microbial growth and accumulated extracellular polymeric substances (EPS), which are common markers of poor biological control.
High extracellular polymeric substances (EPS) production or the growth of certain biological groups can create a ‘glue effect,’ leading to biofouling on membrane surfaces. Suspended or supersaturated organic and inorganic substances can also accumulate on the membrane, serving as a substrate or nutrient source for other bacteria, which further contributes to membrane fouling.
This level of fouling severely compromises membrane performance, leading to reduced permeate flow and increasing transmembrane pressure (TMP). If left unmanaged, it escalates maintenance frequency, reduces operational efficiency, and shortens membrane lifespan.
Such fouling is typically the result of several operational failures, including poor nutrient balance, inadequate aeration, insufficient microbial population control, and the absence of routine monitoring and cleaning protocols. These factors collectively create an environment where biological growth becomes excessive and unregulated, ultimately resulting in costly system inefficiencies.
The Impact of Excellent Biological Treatment

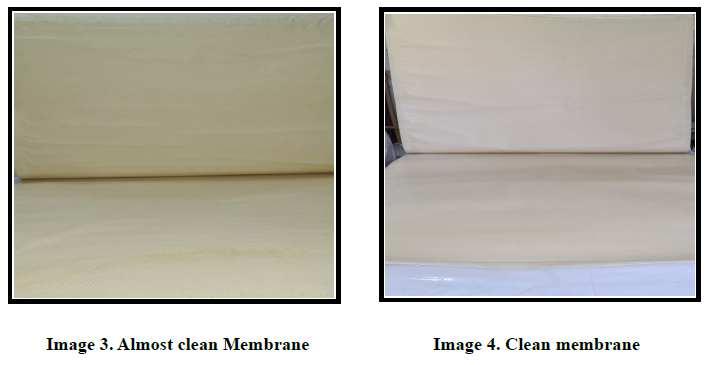

Images 3 and 4, as observed in well-maintained facilities, such systems typically show minimal visible fouling, consistent flux rates, and stable transmembrane pressure (TMP), all of which contribute to a more efficient and reliable process. The reduced frequency of chemical cleanings and extended membrane lifespan further highlight the operational benefits of effective biological control.
These outcomes are achieved through a combination of best practices, including balanced microbial growth supported by proper nutrient management, optimized aeration and mixing, and routine control of sludge age and mixed liquor suspended solids (MLSS). Regular monitoring of microbial activity such as using microscopy, enables early detection of potential imbalances. Additionally, early-stage biofilm removal protocols help prevent irreversible fouling and performance decline.
Operators implementing excellent biological treatment often report 30–50% longer membrane life, a marked reduction in the frequency of clean-in-place (CIP) procedures, and lower overall chemical and energy consumption. Most importantly, these systems deliver consistently high effluent quality, reinforcing the critical value of well-managed biological processes in membrane treatment applications.
Chlorine in RO Pretreatment
Chlorine plays a crucial role in reverse osmosis (RO) pretreatment, serving as more than just a standard disinfectant. Among the various disinfection options available, chlorine remains one of the most widely adopted due to its effectiveness and cost-efficiency. However, its performance in microbial control is not determined by dosage alone. For chlorine to function effectively without compromising membrane integrity, several key parameters must be carefully managed.
Critical factors influencing chlorine’s effectiveness include its concentration, the contact time with the water, the pH level, and the presence of organic contaminants such as total organic carbon (TOC), biochemical oxygen demand (BOD), and chemical oxygen demand (COD). These variables collectively determine not only how well chlorine inactivates harmful microorganisms but also how compatible it remains with sensitive membrane materials used downstream.
Proper control of these factors ensures a balanced approach—achieving robust disinfection while minimizing the risk of membrane damage or premature fouling. As such, chlorine dosing in RO pretreatment should always be approached as a carefully controlled process rather than a simple chemical addition.
The Importance of CT Value in Chlorine Disinfection
An essential concept in understanding chlorine disinfection performance is the CT value, which reflects the combined effect of chlorine concentration and contact time. Chlorine acts as a powerful oxidizing biocide, and its effectiveness is most accurately assessed using the CT formula:
CT = Concentration of residual chlorine (mg/L) × Contact time (minutes)
The CT value serves as a key indicator of disinfection efficacy. A higher CT generally corresponds to greater microbial inactivation, provided that the chlorine remains active throughout the contact period and is not significantly consumed by organic or inorganic substances present in the water. This makes it critical to account for chlorine demand when calculating the actual disinfectant potential.
Maintaining an optimal CT ensures effective pathogen control while avoiding excessive chlorine exposure that could damage sensitive membrane components in downstream processes.

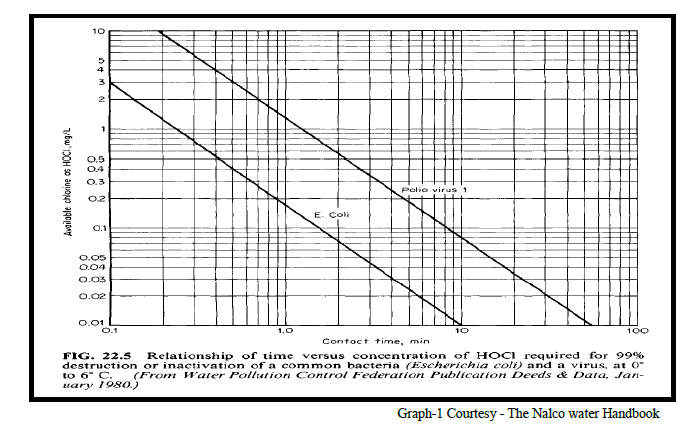

Graph 1: Time vs. HOCl Concentration for Microbial Inactivation
Shows that higher HOCl concentrations require less contact time to achieve 99% inactivation of
E. coli and Poliovirus 1, especially in cold water (0–6°C). For example, 0.1 mg/L HOCl needs over 10 minutes, while 1 mg/L achieves the same result in just over 1 minute. This demonstrates the importance of balancing chlorine dose and contact time for effective disinfection.
Equally important is pH, which controls chlorine speciation. At lower pH, more hypochlorous acid (HOCl) is present—an efficient disinfectant. At higher pH, the weaker hypochlorite ion (OCl⁻) dominates, reducing effectiveness. For best results, operators must optimize chlorine concentration, contact time, and pH together.

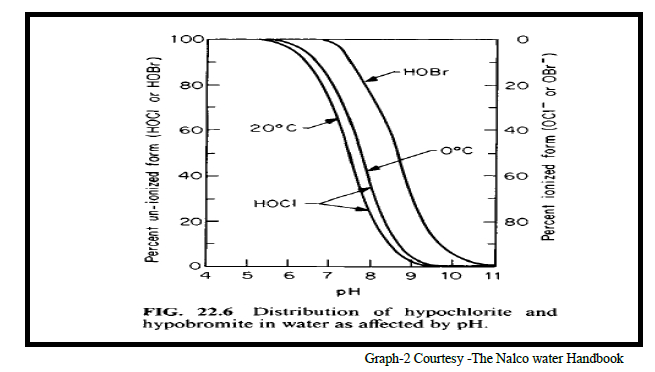

Graph- 2: Effect of pH on the Distribution of Hypochlorous Acid (HOCl) and Hypochlorite Ion (OCl⁻)
This graph demonstrates how pH affects the chemical form and, therefore, the disinfection power of chlorine in water. It shows the distribution of HOCl (active form) and OCl⁻ (weaker form) at different temperatures (0°C and 20°C), along with HOBr (hypobromous acid) for comparison.
At lower pH values (below ~7.5), over 80–90% of chlorine exists as hypochlorous acid (HOCl), which is highly effective at killing bacteria, viruses, and other microorganisms. As pH increases, the proportion of HOCl drops sharply, and the less potent hypochlorite ion (OCl⁻) becomes dominant, significantly reducing disinfection efficiency.
Temperature also plays a role at lower temperatures, the transition from HOCl to OCl⁻ occurs more slowly across the pH scale, but the trend remains the same, higher pH favors less effective chlorine species.
Practical Impact of pH on Chlorine Efficiency
As pH increases, the percentage of chlorine in its most effective form, hypochlorous acid (HOCl) drops sharply. For example, at pH 6.5, about 95% of chlorine is HOCl, requiring just 1 ppm for effective disinfection. At pH 7.5, HOCl drops to ~50%, and the same level of disinfection may need up to 4 ppm chlorine. This illustrates why pH control is critical for maintaining disinfection efficiency and minimizing chemical usage.
Impact of Organic and Inorganic Load on Chlorine Availability
Organic substances such as total organic carbon (TOC), biochemical oxygen demand (BOD), and chemical oxygen demand (COD) exert a significant chlorine demand by consuming free chlorine, thereby reducing its availability for effective microbial inactivation. Similarly, inorganic compounds like ammonia, iron, and manganese also react with chlorine, further depleting the disinfectant residual.
This combined chlorine demand must be carefully accounted for in dosing calculations, especially when treating feedwaters with high organic or inorganic loads. Neglecting these factors can result in insufficient disinfection, leading to microbial fouling, accelerated membrane degradation, and ultimately, reduced overall system performance.
Residual Chlorine Quenching and Membrane Protection
Since RO membranes are sensitive to oxidizing agents, residual chlorine must be completely neutralized before the water reaches the membranes. This is typically achieved by dosing sodium metabisulfite (SMBS) downstream of chlorine addition.
- Overdosing chlorine without proper SMBS neutralization can cause irreversible membrane damage.
- Insufficient SMBS can lead to chlorine breakthrough, compromising membrane integrity and system performance.
Best Practices for Microbiological Control in RO Systems
To ensure effective and reliable microbial control, operators should optimize chlorine dosing based on established CT (concentration × time) requirements while continuously monitoring both pH and chlorine residuals. It is essential to account for organic loading in the feedwater, as this impacts chlorine demand. Additionally, proper dosing of sodium metabisulfite (SMBS) must be maintained to guarantee complete chlorine quenching before the RO membranes. Regular microbiological testing should be conducted to verify system performance and promptly detect any microbial breakthrough or fouling issues.
Given these complexities, effective microbiological control requires adopting chlorine dosing strategies that optimize the dosing points, chlorine concentration, pH control, and contact time. Additionally, maintaining proper sodium metabisulfite (SMBS) dosing downstream to neutralize residual chlorine is essential to protect RO membranes from oxidative damage. Routine system checks and monitoring of residual chlorine, pH, and microbial counts also play a critical role in ensuring long-term reliability and cost-effectiveness of water treatment systems.
In summary, successful microbiological control in RO systems is not simply about adding chlorine but involves using it intelligently. Understanding the interplay between chlorine dose, contact time, pH, and organic load allows operators to develop tailored disinfection protocols that enhance system performance, prolong membrane life, and reduce operational costs. Water may theoretically require minutes of contact time for disinfection, as indicated by the graph, although practical time required is ‘X’ min for ‘Y’ concentration of chlorine at ‘Z’ pH at with ‘A’ concentration of TOC in water, considering chlorine is an oxidising agent, 20-30 time is required to get excellent results.
Applying the right dose under the right conditions maximizes disinfection efficiency and safeguards RO system integrity.
